NS9300 DNA Ultramicro spectrometer

FOB Reference Price:Get Latest Price
$6,829.00 - $6,859.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ALLFINE
Model Number:
NS9300
Size:
195mmX138mmX105mm
Weight:
4kg
Focal Length:
0.02~80(160,320 optional,10mm optical distance)
Wavelength Range:
200~850nm
Measurement Range:
1mm,0.2mm(0.1mm,0.05mm optional)
Sample volume:
0.5~2μl
Optical Distance:
1mm,0.2mm(0.1mm,0.05mm optional)
Light source:
Xenon lamp
Wavelength Accuracy:
±1 nm
Wavelength Repeatability:
≤0.3nm(FWHM@Hg 253.7nm)
Photometric Accuracy:
1%(0.76 Abs@350nm)
Baseline linearity:
0.002Abs(1mm)
Photometric Range:
0.02~80(160,320 optional,10mm optical distance)
Detection Time:
<5s
Voltage:
AC100~240V (50~60Hz)
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The normal package is hard carton box(Size: L*W*H).
Port
Shenzhen.Shanghai.etc
Lead Time :
5 days
Product Description

1. Approval quality.

2. Easy to Operate.

3. Certification: Applicable.

4. Certification: ISO9001:2008.



NS9300 minim spectrometer

Sample volume

0.5~2μl

Optical Distance

1mm,0.2mm(0.1mm,0.05mm optional)

Light source

Xenon lamp

Detector

3648 pixel Linear CCD Array

Wavelength Range

200~850nm

Wavelength Accuracy

±1 nm

Wavelength Repeatability

≤0.3nm(FWHM@Hg 253.7nm)

Photometric Accuracy

1%(0.76 Abs@350nm)

Baseline linearity

0.002Abs(1mm)

Photometric Range

0.02~80(160,320 optional,10mm optical distance)

Concentration

Detection

Range

dsDNA:1.5~4000ng/μl (8000,16000 optional)

ssDNA:2.0~2640ng/μl (5280,10560 optional);

RNA:2.0~3200ng/μl (6400,12800 optional);

BSA:0.1~119.4 mg/ml(238.8,477.6 optional)

Detection Time

<5s

Dimensions

195mm×138mm×105mm

Net Weight

≤4kg

Voltage

AC100~240V (50~60Hz)

Power

24W

Detailed Images

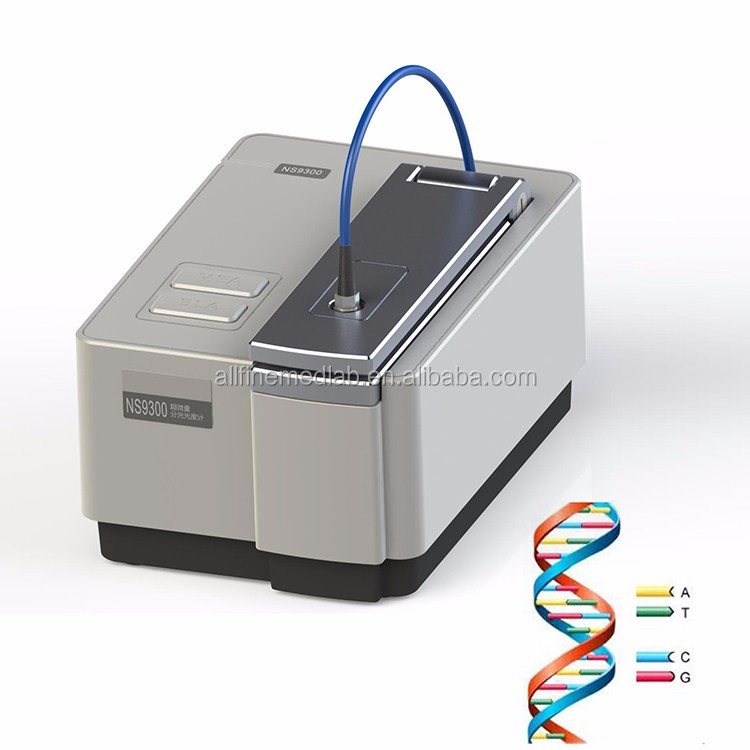

NS9300 minim spectrometer is a new UV - visible at all wavelengths minim spectrometer can be used to detect nucleic acids, proteins, cell solution as well as conventional UV - visible full wavelength scanning.



Application:

  • DNA level(ssDNA,dsDNA,RNA)
  • Direct protein quantitation(ProteinA280)
  • Colorimetric protein quantification(Protein Lowry/Protein Bradford)
  • Bacterial growth density and growth period determined
  • UV - visible full wavelength scan



Features:

*Ultra-small sample volume, the lowest measured volume of only 1μl, without cuvette

*Domestic top 3648 pixel linear CCD array

*Long life pulsed xenon lamp (lifetime> 10 years)

*Ultra-low power, low heat, no warm-up

*External "blank" and "test" the big button

*Friendly interface, user-calibration

*Light intensity value, absorbance Dual Display Mode

*Fast full spectrum scanning, 5s complete absorption spectroscopy 200-850nm, no moving parts, higher reliability

*Dual detector optical path is automatically adjusted to meet the high concentration samples detected directly without dilution treatment

*Small size, light weight, optional mobile power (12V), for field detection

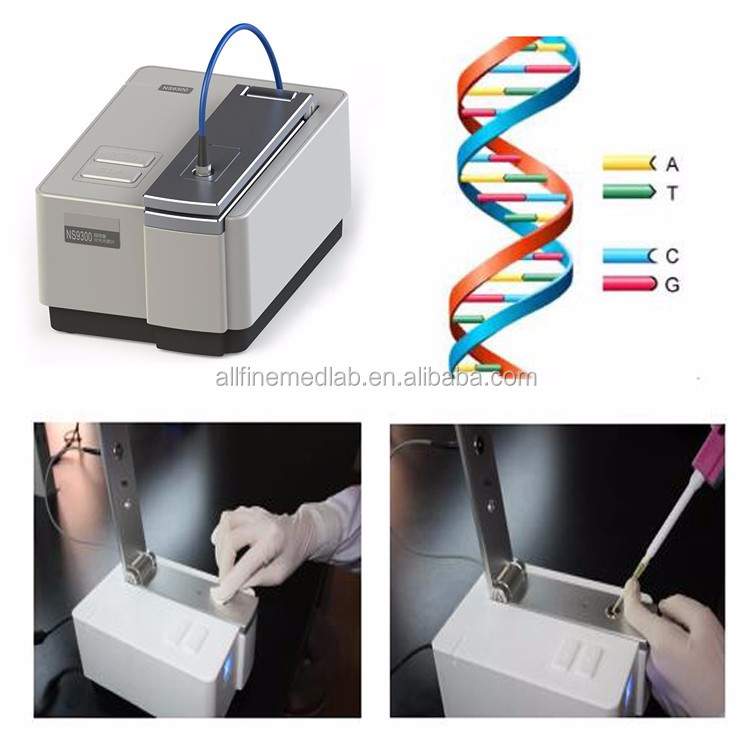

Simple operation Only four steps to complete the test

1. Select type of test on the main interface

2. Clean test bench

3. dropping the test solution

4. Click "collecting samples" button


2016-48



Packaging & Shipping

03pack+delivery pic.jpg

Packaging Size (L*W*D)



 CM
 Gross Weight KG
 Pack Detail:

*The normal package is hard carton box

*Accept wooden box packing in charge.

*Pack it according to customers special request.

Our Services
ask us.jpg

.jpg

Pre-Sales Service

* Reply in 24 hours

Inquiry and consulting support.

* Sample testing support.

* View our Company.

 After-Sales Service

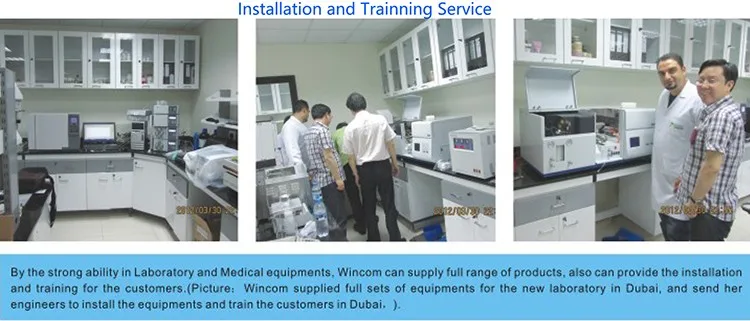

* Training how to instal the machine,
